TUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow Meter

Brand Name : YunYi

Model Number : TUF-2000B

Place of Origin : China

MOQ : 1 piece

Price : USD210.0-USD350.0 PER PIECE

Payment Terms : T/T, Western Union

Supply Ability : 1000 Piece/Pieces per Month

Delivery Time : 10DAYS

Packaging Details : standard export package

Warranty : 12 months

Customized support : OEM, ODM

Type : Variable Area Water Flowmeters

Name : TUF-2000B Wall mounted ultrasonic flowmeter External clip on ultrasonic flow meter

Linearity : 0.5%

Repeatability : Repeatability

DN size : 15~6000mm

material : SS316 sensor

Power supply : 24VDC or recharge battery

Connection : clamp on

Communication : RS485

Output : 4-20mA

Application : Liquid Flow Measurement

Contact Now

Description TUF-2000B Wall Mounted Clamp On Ultrasonic Flowmeter

TUF2000B flowmeter can be virtually applied to a wide range of in long-term online measurement. Convertor protection class IP67, transducer protection class IP68. A variety of liquid applications can be accommodated:ultra-pure liquids, portable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent.etc

Detailed Images of TUF-2000B Wall Mounted Clamp On Ultrasonic Flowmeter
TUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow MeterTUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow Meter
TUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow MeterTUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow Meter

Specification of TUF-2000B Wall Mounted Clamp On Ultrasonic Flowmeter

Pipe Size DN50~DN6000mm
Pipe Material Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.
Working Temperature -20~60℃
Liquid Temperature -30~160℃
Type of Liquid Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.
Signal Output

1 way 4-20mA output
1 way OCT pulse output
1 way Relay output
Signal Input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Communication interface RS485, support MODBUS
Application online measurement


TUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow Meter
TUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow Meter
TUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow Meter

Features of TUF-2000B Wall Mounted Clamp On Ultrasonic Flowmeter

•Measurement accuracy 1 %.
•Convertor protection class IP67, transducer protection class IP68.
•Wide measurement range, pipe size from DN15mm to DN6000mm.
•Three types installation method: wall mounted, DIN-rail mounted , explosion-proof box mounted.
Connect the temperature transducer can finish the heat/energy
TUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow Meter
TUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow Meter
TUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow MeterTUF-2000B Wall Mounted Dimension Clamp On Ultrasonic Flowmeter

TUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow Meter

Selection Guide TUF-2000B Wall Mounted Clamp On Ultrasonic Flowmeter

TUF-2000B Wall Mounted Ultrasonic Flowmeter External Clip On Ultrasonic Flow Meter

I Optional Transducers |

Please choose the suitable transducer,according to different liquid pipe condition and installation method, (please refer to the measuring diagram).

Types Picture Spec. Model Measurement Range Temperature Dimension
Clamp on w Small Size TS-2 DN25-DN100 -30 -90°C 45x25x32mm
* Medium Size TM-1 DN50-DN700 -30-90°C 64x39x44mm
Large Size TL-1 DN300~DN6000 -30-90°C 97x54x53mm
High temp clamp on Small Size TS-2-HT DN25-DN100 -30-160°C 45x25x32mm
Medium Size TM-1-HT DN50~DN700 -30-160°C 64x39x44mm
Large Size TL-1-HT DN300-DN6000 -30-160°C 97x54x53mm
Insertion Standard TC-1 DN80-DN6000 -30 -160°C 190x80x55mm
Lengthen TC-2 DN80-DN6000 -30-160°C 335x80x55mm
Pipe ji type G1 DN15-DN32 -30-160°C SUS304 thread connection Please refer to detailed pipe dimensions
Standard G2 DN40-DN1000 -30-160°C carbon steel thread connection

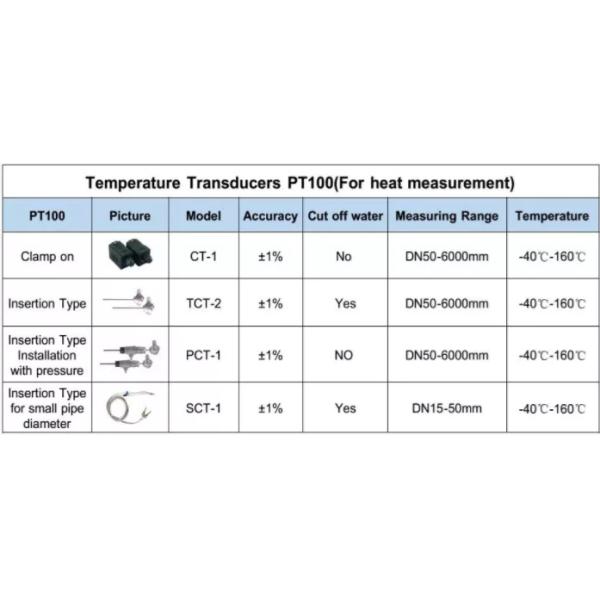

I Optional Temperature Transducers I
Connect the temperature transducer can finish the heat/energy measurement

Picture Specification Model Meas. Range Temperature Cut of water Accuracy
Clampon temperature Transducer Pt100 CT-1 >DN50 -40-160C No 100°C +-0.8°C
Insertion temperature Transducer Pt100 TCT-1 >DN50 -40-160C Yes
Insertion Pt100 Installation with pressure PCT-1 >DN50 -40-160C No
Insertion Pt100 Small size pipe diameter SCT-1 <DN50 -40-160t Yes
